OXE 175
Engine Specifications
Application: Commercial Engine, Diesel Outboard
Power Output (HP): 175
Power Output (kW): 130.5
Rated Speed: 4100 RPM
Displacement: 2.0L
Cylinders: 4
Aspiration: Turbocharged, Intercooled
Dry Weight: 350kg
Dimensions: 994mm x 1880mm x 678mm (25" leg)
Certifications: EPA TIER III, IMO TIER II (MARPOL VI TIER 2), RCD, CCS
Engine Specifications
Application: Commercial Engine, Diesel Outboard
Power Output (HP): 175
Power Output (kW): 130.5
Rated Speed: 4100 RPM
Displacement: 2.0L
Cylinders: 4
Aspiration: Turbocharged, Intercooled
Dry Weight: 350kg
Dimensions: 994mm x 1880mm x 678mm (25" leg)
Certifications: EPA TIER III, IMO TIER II (MARPOL VI TIER 2), RCD, CCS
Engine Specifications
Application: Commercial Engine, Diesel Outboard
Power Output (HP): 175
Power Output (kW): 130.5
Rated Speed: 4100 RPM
Displacement: 2.0L
Cylinders: 4
Aspiration: Turbocharged, Intercooled
Dry Weight: 350kg
Dimensions: 994mm x 1880mm x 678mm (25" leg)
Certifications: EPA TIER III, IMO TIER II (MARPOL VI TIER 2), RCD, CCS
The ultimate work tool

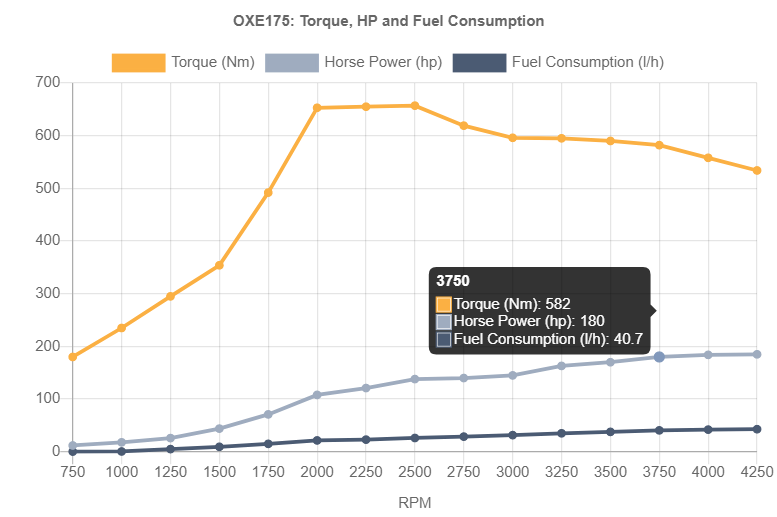

The OXE175 is specifically developed with fishing and/or fish-farming in mind. It delivers 175hp and 380Nm (280 ft-lb) of torque. With the high torque gear ratio on the primary belt transmission, the unit delivers up to 607NM (447 ft-lb) of torque on the propeller shaft.
The OXE175 is also the ultimate work tool for planning vessels that need to carry heavy loads for longer periods of time. For this reason, it also comes equipped with a larger cooling system that allows for long hours and heavy loads. The unit allows for superior range with fuel consumption as low as 37L/hr.
Performance
The powerful high torque of the diesel engine manifests itself throughout the OXE Diesel engine series. Together with the robust transmission and interchangeable gear ratios, it provides the users with reliable options to use the engine as both a powerful workhorse and a high-speed solution.
Diesel provides for high efficiency and torque. It gives increased load capacity and greatly reduced fuel consumption compared to gasoline, increasing the range by over 60%.
Environmental Benefits
The reduced fuel consumption is a key factor to why the OXE Diesel engine emits significantly lower CO2 than a gasoline outboard engine. One litre of diesel produces approximately 2.69kg CO2 and one litre of gasoline produces 2.36kg CO2 when ignited. Since the OXE175 consumes less fuel than petrol alternatives, it can reduce CO2 emissions by up to 34.5%.
* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
