6LY440
Engine Specifications
Application: Powerboat Engine
Power Output (HP): 440
Power Output (kW): 324
Rated Speed: 3300 RPM
Displacement: 5.813L
Cylinders: 6
Bore x Stroke: 106mm x 110mm
Aspiration: Turbocharged & Intercooled
Dry Weight: 585kg
Dimensions: 1440mm x 748.5mm x 773.8mm
Certifications: RCD 2, IMO Tier 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Engine Specifications
Application: Powerboat Engine
Power Output (HP): 440
Power Output (kW): 324
Rated Speed: 3300 RPM
Displacement: 5.813L
Cylinders: 6
Bore x Stroke: 106mm x 110mm
Aspiration: Turbocharged & Intercooled
Dry Weight: 585kg
Dimensions: 1440mm x 748.5mm x 773.8mm
Certifications: RCD 2, IMO Tier 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Engine Specifications
Application: Powerboat Engine
Power Output (HP): 440
Power Output (kW): 324
Rated Speed: 3300 RPM
Displacement: 5.813L
Cylinders: 6
Bore x Stroke: 106mm x 110mm
Aspiration: Turbocharged & Intercooled
Dry Weight: 585kg
Dimensions: 1440mm x 748.5mm x 773.8mm
Certifications: RCD 2, IMO Tier 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
YANMAR’s fourth-generation 6LY-CR marine diesel series builds on the virtues of its classic six-cylinder forerunners, advancing efficiency and lowering emissions.
The new engine takes what was a very accomplished and highly popular power unit to a higher level. Like all YANMAR marine engines, it was designed expressly for marine duty.
After decades of distinguished service 6LY engines are still regarded as some of the best in the world for cruising and workboat duty. In has been transfigured into the 6LY-CR and is set to continue this tradition. Its small footprint, low height and narrow width will make it attractive for installation in new craft with ever-tighter engine room space. Its high power density in an ultra-compact package will also make it an engine of choice for replacement not only of earlier YANMAR units but also larger and heavier engines of similar output.
Features:
Part of Yanmar’s best in class Common Rail engine line up
A proven solution for jet and shaft drives
Compact, lightweight and powerful
Certified for recreational and light duty commercial applications
High torque on the low-end and over the power band, delivering leading acceleration and top end responsiveness
4th generation reliability for proven performance
Designed for efficient installation and refitting
Impressively Clean and Powerful Performance
Built on 30 years of history, the 4th generation 6LY-CR is a smooth and robust 6 cylinder in-line engine, producing impressively clean and powerful performance.
Incorporating an advanced Denso common rail fuel injection system, the 6LY-CR delivers excellent fuel economy and significantly less noise than previous generations, while the high torque output throughout its full operating range produces class leading acceleration and responsive performance.
Its narrow and lightweight profile enables installation in the tightest of engine rooms, making it the perfect solution for repowering, as well as newly built vessels.
Electronic Integration
The new 6LY-CR has taken the engine into a new era of mechanical and digital sophistication. YANMAR have completely re-engineered the fuel induction and aspiration systems, with all functions now managed by state-of-the-art electronic precision for better all-round performance.
YANMAR have replaced single injectors with a high-pressure common-rail fuel system to deliver exceptional finely atomised fuel to the cylinders for better power-to-weight performance, fuel economy and smooth running.
Fingertip Control

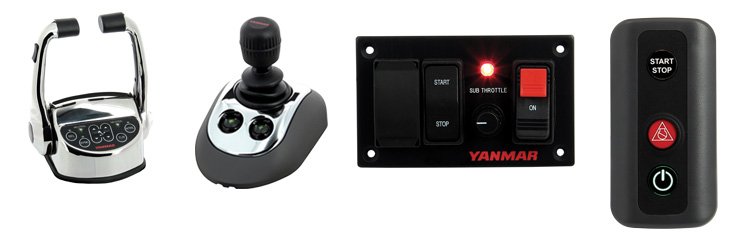

For the ultimate in easy and precise boat control, YANMAR offers the latest VC10 ‘fly-by-wire’ vessel control system to give precision gear changing and throttle adjustment with perfect ‘feel’. And with the joystick control option as part of a fully-integrated YANMAR engine and controls package, docking is also really easy.
Standard Engine Package
Exhaust mixing elbow [L-type]
Alternator 12V – 120A
VC10 Vessel Control System
Fresh water expansion tank
Optional Accessories
High-riser mixing elbow [instead of L-elbow]
Flexible mounts
Secondary alternator 12V – 120A or 24V – 45A
Extension harness [3m, 5m, 10m]
Second station
JC20 Inboard Joystick
NMEA2000 Engine monitoring system
SOLAS including Certificate [factory fit only]
Bilge pump [12V]
* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
